KD-7010 auto radio android screen for Benz E-Class
- OS: ANDROID 10
- Screen Size: 7”
- Resolution: 1024*600
- Model Number: KD-7010
- Operation System: Android 10.0 system
- CPU: Rockchip PX6(3399)
Cotex A72(1.8Ghz)+A53(1.4Ghz), 6 Core - Main Frenqency: 1.5GHz
- RAM/ROM: 4G+32G / 4G+64G / 4G+128G
Description
Advantage & Features
Benefits
Description

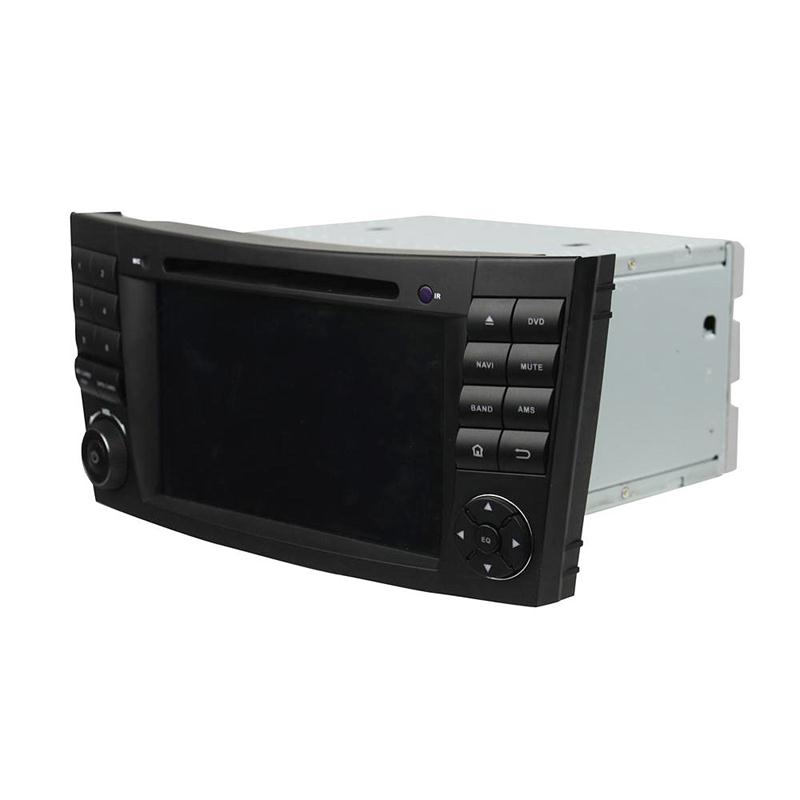

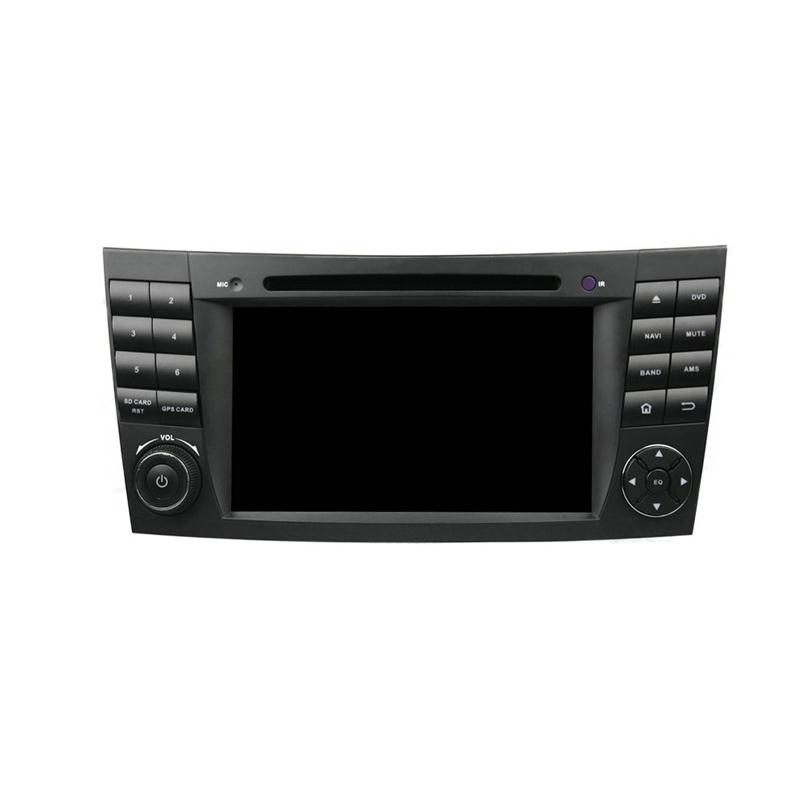

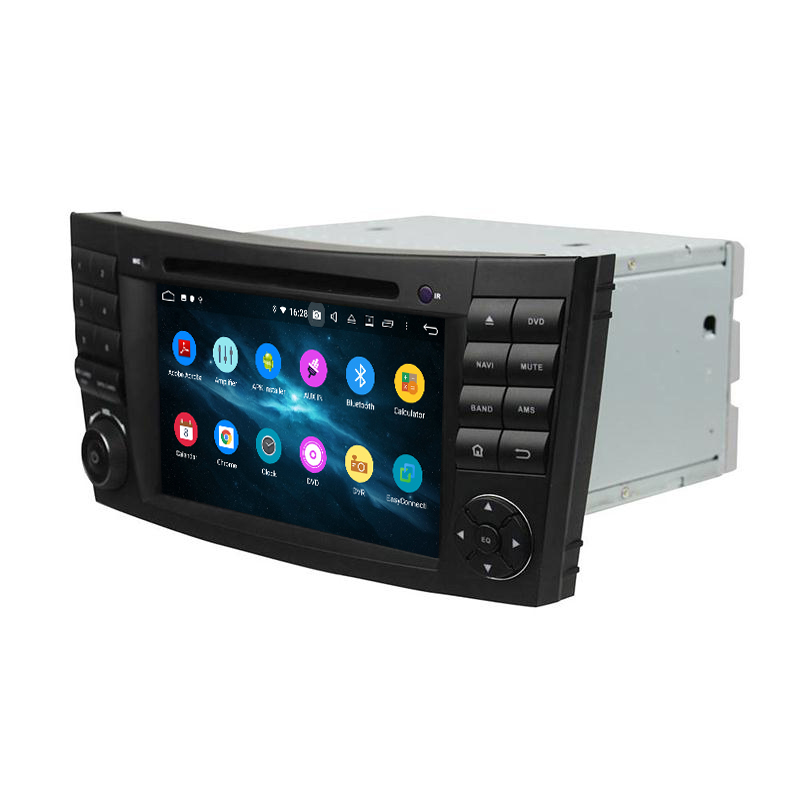

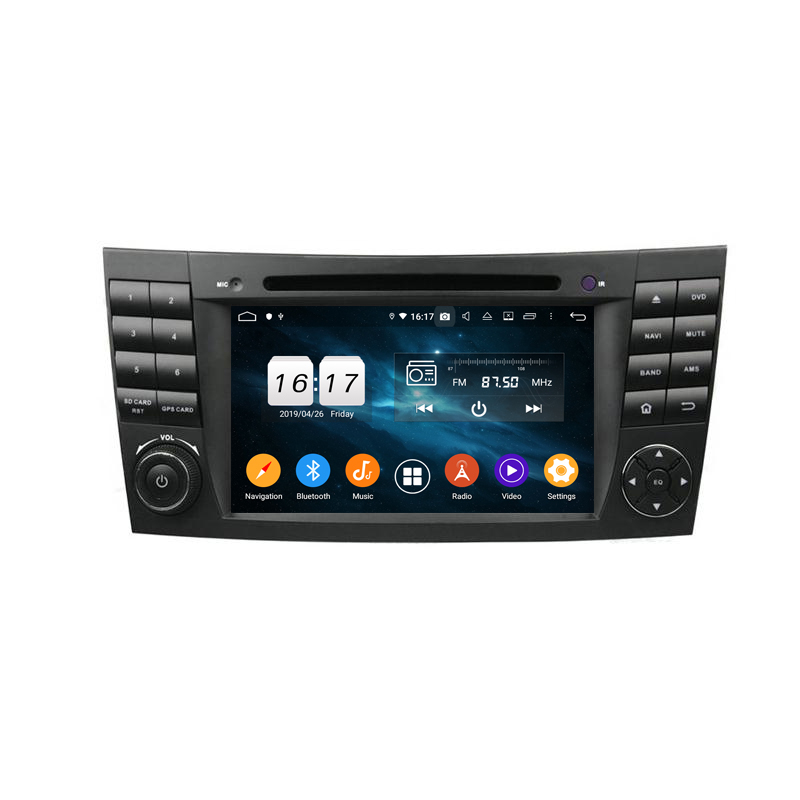

Auto radio android screen for Benz E-Class
System and Hardware Parameters
|
|||
OS
|
Video Decoder
|
1080P HW
|
|
CPU
|
Rockchip PX5 Cortex A53, 8 Core
|
TFT Drive IC
|
Rockchip PX5
|
Main Frenqency
|
1.5GHz
|
MCU
|
STM8S207R8T6
|
RAM
|
SAMSUNG DDR3 2GB/4GB
|
ROM
|
16GB/32GB/64GB
|
EQ IC
|
ROM BD37033FV-ME2
|
DSP
|
BU32107
|
DVR
|
directly connect external USB DVR Camera
|
Audio IC
|
ROM BD37033FV-ME2
|
Radio
|
NXP, TEF6686 (including RDS)
|
Power IC
|
MPS MP1854
|
Bluetooth
|
GOC-RF210 ( BT 5.0)
|
Working Temp.
|
(-20 ~ 70°C)
|
Parrot Bluetooth
|
Optional (built-in)
|
Storage Temp.
|
(-40 ~ 85°C)
|
Mirror Link / EasyConnect
|
Yes, support
|
||
Display Screen
|
Hanstar HD Screen (IPS optional)
|
Apple CarPlay & Android Auto
|
Optional (built-in)
|
Amplifer IC
|
ST, TDA 7851
|
4G LTE (SIM Card)
|
Optional (built-in)
|
Power Supply
|
4x50W
|
OBD II
|
Optional (external)
|
GPS Module
|
GT-1110-UB8X(UBX-M8030-KT)
|
TPMS
|
Optional (external)
|
WIFI Module
|
BL-R8188EU1
|
DVB-T (MPEG4)
|
Optional (built-in & external)
|
Front Camera input
|
Optional cable
|
ISDB-T (Full SEG)
|
Optional (built-in & external)
|
Rear View input
|
AHD rear view camera input
|
DAB+
|
Optional (built-in & external)
|
Standard accessories including:
Head unit x 1
Power cable x 1
Camera-in cable x 1
Aux-in cable x 1
RCA cable x 1
USB extend cable with 2 USB input x 1
GPS antenna x 1
Optional functions & accessories:
*CarPlay & Android Auto: $10
*Voice Control: $8
*Parrot Bluetooth: $30
*4G LTE: $35/ $50
*Built-in DAB+: $15
*External DAB+ Box: $20
*OBDⅡ: $10
*TPMS: $55
*720P USB DVR Camera: $13
*1080P USB DVR Camera: $25
*720P Rear View Camera: $10
*AHD 960P Rear Camera: $13
*Front View Camera: $10
*Built-in DVB-T(MPEG4): $35
*Built-in ISDB-T(Full SEG): $25
*DVB-T2 Box: $55
*ISDB (Full Seg) Box: $60
*DVB-T(MPEG4) Box: $60
*Headrest Monitor Output: $5
*External Microphone: $1.5
Auto radio android screen for Benz E-Class
This doesn't suggest that your whole telephone interface shows up on the dashboard screen, as this would be both diverting and may be perilous. Android Auto, then again, works more like a stripped-down rendition of Google Now, permitting you to settle on decisions, play music from your telephone, direct messages to contacts, and, use Google Maps. auto radio android screen for Benz E-Class is providing riders ease in driving.
Features and Functions
Messages and calls will be replied to (albeit the last option is perused out by Google Assistant as opposed to showing up on-screen). You will not hear the ping of another WhatsApp message until you detach your telephone. Dissimilar to Bluetooth sound streaming, the sound is shipped off the vehicle's speakers utilizing USB with practically no misfortune in quality. To make phone calls, hands-free Bluetooth is used. On the road, the most important thing is to stay safe. As a result, Bluetooth technology is becoming used in automobiles. If your car is older and Bluetooth isn't built-in, you can upgrade to a new car radio having Bluetooth capabilities. Most Bluetooth uses necessitate the purchase of additional Bluetooth receiver modules, which allow calls to be routed from a linked cell phone to the car's speakers via the radio.
An external microphone, which can be mounted to the dashboard or sun visor, is frequently included in add-on Bluetooth kits. Bluetooth calling features are included in several systems. Higher-end systems may require one or more additional amplifiers, although most head units come with one. Its processor component is present in higher-end automotive audio systems, and it can also improve the sound quality of your multimedia system. Most modern audio systems include smartphone connectivity as standard. Most modern audio systems include smartphone connectivity as standard. This means that your automobile can read your messages, listen to audiobooks, and conduct a range of other functions in addition to playing music.
What makes KLYDE trustworthy?
KLYDE is always promoting the company's growth as a trustworthy corporation. To establish plans, promote knowledge from teamwork. Automotive firms, with the help of organizational culture, can continuously improve their processes and services to achieve their goal and vision. Our success is built on the concept of delivering efficient transportation. Our organization has cultivated a culture of resolving client issues and delivering high-quality products.
Advantage & Features
Advantage
