Home - Products - OEM DVD & Deckless - FOR FORD Series - KD-8507 Klyde car stereo android car DVD player with GPS for Ford Tourneo/Courier

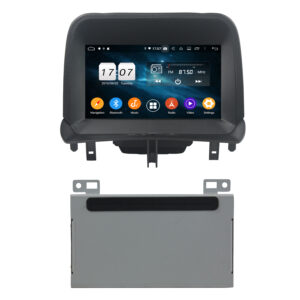

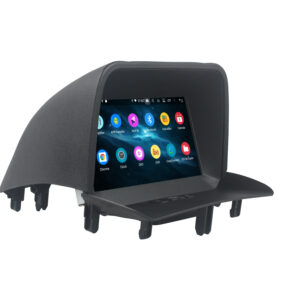

KD-8507 Klyde car stereo android car DVD player with GPS for Ford Tourneo/Courier

OS: ANDROID, Android10.0 system
Screen Type: IPS, LCD, TFT, Capacitive Touch Screen, 2.5D Screen
Resolution: 1280*720
Model Number: KD-8507
CPU: Rockchip PX5 Cortex A53, 8-core
RAM: DDR3 4GB
Flash: 32 GB

KD-8507 Klyde car stereo android car DVD player with GPS for Ford Tourneo/Courier

KD-8507 Klyde car stereo android car DVD player with GPS for Ford Tourneo/Courier

KD-8507 Klyde car stereo android car DVD player with GPS for Ford Tourneo/Courier

KD-8507 Klyde car stereo android car DVD player with GPS for Ford Tourneo/Courier

Description

Advantage & Features

Benefits

Description

Details:

Screen Pixel : 1024*600 OS: Android 10 system CPU: Rockchip PX5 Cortex A53, 8 Core Main Frenqency:1.5GHz RAM:SAMSUNG 4GB DDR3 Nand Flash : 32GB Capacitive multi-touch screen GPS+Radio+AUX IN+DVR+Easy Connect BT 5.0 ( internet connection by BT, 3 ways call) AHD rear view camera input

Standard accessories include:

Head unit x 1
Power cable x 1
Camera-in cable x 1
Aux-in cable x 1
RCA cable x 1
USB extend cable with 2 USB input x 1
GPS antenna x 1

System and Hardware Parameters
OS	Android 9.0	TFT drive IC	Rockchip PX5
CPU	Rockchip PX5,Cortex A53,8 core	Easy Connect	Support
Main Frequency	1.5Ghz	DVR	Built in
RAM	SAMSUNG DDR3 4GB	ROM	32GB/64GB
Radio IC	NXP 6686	Amplifer IC	TDA 7851
Bluetooth	BT 5.0	GPS	MTR
Touch Screen	Capacitive and Multi-touch screen	Working Temperature	-20℃-+80℃
LCD screen	Hanstar Screen	Power supply	4*50W
Optional Funtions
Carplay	Optional (external)	Android AUTO	Optional (built in)
Parrot Blutooth	Optional (FC6000T)	DSP	Optional (built in)
Rear view	Optional (AHD rear view camera input)	DVR Camera	Optional (external) USB Camera
TPMS	Optional (external)	OBD II	Optional (external)
DAB BOX	Optional (SHINWA DB-MF03)	DVB-T(MPEG4)	Optional (built in)
ISDB-T(Full SEG)	Optional (built in)	4G LTE	Optional (built in)
WIFI Parameters
Power supply	Vcc_3.3V	Suppoted Protocol/standard	IEEE802.11B/g/n compatible WLAN
RF Power	15dBM	Suppoted Protocol/standard	IEEE802.11B/g/n compatible WLAN
Interface type	USB2.0	Frequency	2.4-2.484GHz
Multi-media Parameters		Radio Parameters
Music Format	MP3、WMA、AAC、RM、LFAC etc	Frequency Range	FM: 76.0MHz-108.0MHz
Picture Format	JPG/BMP/JEPG/GIF/PNG	Frequency Range	AM: 522KHz-1620KHz
Video Format	MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson SparK, Spark, VP8, AVS Stream…	Country	China, Europe, Eastern, Europe, Russia, USA1, USA2, Japan

UI

Detailed Imformation
